$297.00
Now available live with Victron 3.50~28 GX Beta and later.
Battery operated Pulsed Coherent Radar tank level Sensor to 1000mm with 1mm repeatability and usable in black water, grey water and fresh water tanks.
Specifications
This battery powered sensor:
- Bluetooth Connection to Victron GX models ONLY
- Battery Life 3-5 years (longer range and lower level tank, battery life 3 years. Shorter range and tank level typically 50% then 5 year)
- Battery 2744
- Bluetooth 5.3 Adv Output ONLY
- Deadband 30mm
- Max Depth 1200mm pre-set. Can be ordered to 2000mm
- Repeatability 1mm
- Press button on top and reporting changes to 10 sec intervals for 10mins (during commissioning)
- After 10 mins at 10 sec reporting, interval changes to 60 second intervals
ETSI
Safiery declares that this sensor is compliant with the European commission radio equipment directive 2014/53/EU article 3.1 and 3.2.
Mounting
The base of the Sensor has 2 sets of holes:
- Â SAE 5 bolt hole
For Plastic Tanks:
- Glue Sensor to top of tank. The SAE bolt holes form the basis for the bonding.
Cable Length:
- No Cable. It is Battery powered and Bluetooth
Connections:
- No Connections
Simple Calibrations:
- Calibration needed from Display
Pic Shows: Traditional Victron GX Graphics User Interface
Pic Shows: NEW Victron GX Graphics User Interface

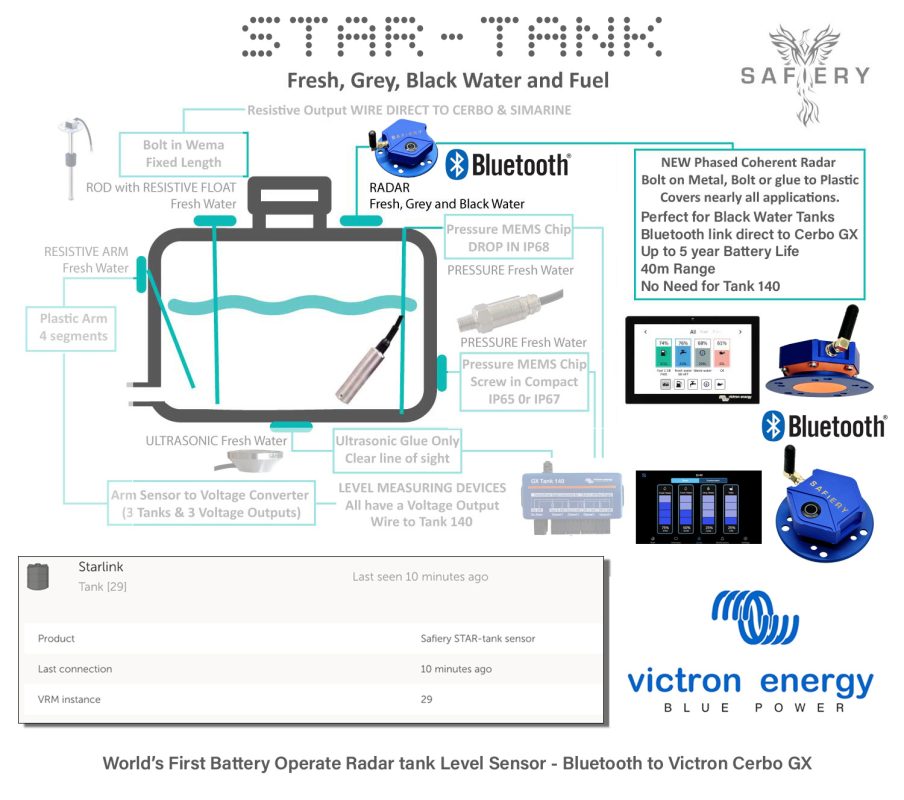

Pic Shows: Safiery STAR-Tank Radar Sensor with Long Range Bluetooth Battery Operated
STAR-tank is a radar based tank level sensor that mounts at the top of the tank.
- Operates directly through non-metalic tanks
- In metal tanks a hole is cut and an SAE 5 holt bolt pattern used (industry standard)
- Accurate to 1mm
- Operates in Black and Grey Water. It is not affected by foam or gasses
- This model is battery operated with a target 5 year life.
- Unit has “Long Range Bluetooth” that we have tested to 100m line of sight and 40m through metal layers in a typical van build.
| Weight | .3 kg |
|---|---|
| Dimensions | 15 × 15 × 5 cm |
